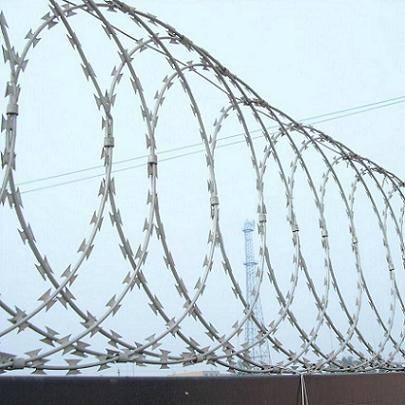

Galvanized Razor Wire (concertina wire)

Short Description:








  • Origin: China
  • Brand: FIVE STAR LIGHT
  • Material: HDG SHEET
  • Razor blade: BTO-22
  • Inner wire: 2.5mm+/-0.1mm
  • Razor barb width: 15+/-1mm
  • Razor barb length: 22+/-1mm
  • Coil diam: As clients requirement
  • Packing: As clients requirement
  • Product Detail

    Metal wire expert

    Product Tags

    Razor wire is also named concertina coils or razor type barbed wire. It is a kind of modern security fencing materials with better protection and fencing strength made of hot-dipped galvanized steel sheets or stainless steel sheets. With beautiful and sharp blades and strong core wire, razor wire has the features of secure fencing, easy installation, age resistance and other properties.

    Application: Razor type barbed wire is widely used in high-grade residence district, warehouses, prisons and in military fields and other sites requiring severe fencing and security.

    Razor wire can be classified into straight type razor wire, concertina coils, crossed type and flat type according to the installation models.



    Galvanized razor wire (concertina wire)

                                           Razor blade type and specification

    Reference

    Number

      Blade style

    Thickness

      (mm)

    Wire Diam

      (mm)

    Barb Length

      (mm)

    Barb width

    (mm)

    Barb space

      (mm)

    BTO-12

    STYLE_01

    0.5± 0.05

    2.5± 0.1

    12± 1

    15± 1

    26± 1

    BTO-15

    STYLE_02

    0.5± 0.05

    2.5± 0.1

    15± 1

    15± 1

    33± 1

    BTO-22

    STYLE_03

    0.5± 0.05

    2.5± 0.1

    22± 1

    15± 1

    34± 1

    BTO-30

    STYLE_04

    0.5± 0.05

    2.5± 0.1

    30± 1

    18± 1

    45± 1

    CBT-25

    STYLE_05

    0.5± 0.05

    2.5± 0.1

    25± 1

    16± 1

    40± 1

    CBT-60

    STYLE_06

    0.6± 0.05

    2.5± 0.1

    60± 2

    32± 1

    100± 2

    CBT-65

    STYLE_07

    0.6± 0.05

    2.5± 0.1

    65± 2

    21± 1

    100± 2

    Razor tape wire specification

    Outside Diam

    No.of loops

    Standard length per coil

    Type

    Notes

    450mm

    33

    8m

    CBT-65

    Single coil

    500mm

    41

    10m

    CBT-65

    Single coil

    700mm

    41

    10m

    CBT-65

    Single coil

    960mm

    53

    13m

    CBT-65

    Single coil

    450mm

    112

    17m

    BTO-12.15.20.22.30

    Cross type

    500mm

    102

    16m

    BTO-12.15.20.22.30

    Cross type

    600mm

    86

    14m

    BTO-12.15.20.22.30

    Cross type

    700mm

    72

    12m

    BTO-12.15.20.22.30

    Cross type

    800mm

    64

    10m

    BTO-12.15.20.22.30

    Cross type

    960mm

    52

    9m

    BTO-12.15.20.22.30

    Cross type
